| Brand Name : | Huato |
| Model Number : | S500-EPT-RJ45 |
| Certification : | CE |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union, Paypal, RMB |
| Supply Ability : | 5000units per month |
| Delivery Time : | 1 working day after payment received |

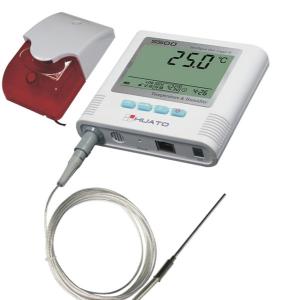

-80℃ Cold Storage Freezer Real Time Temperature monitor TCP IP Data Logger with PT100 Temperature Sensor S500-EPT-RJ45
S500-EPT-RJ45 real time monitoring system based on TCP/IP protocol, data transfer using RJ45 Ethernet communication interface, with a single temperature recorder for acquisition, at the same time on a large area of a plurality of temperature monitoring points, monitoring and management of records, is the automatic monitoring system of a set of 24 hours of uninterrupted real-time monitoring.
This system has powerful monitoring function, integrated all data to a PC server, system monitoring software for data storage and analysis, can print historical data and graphs. When the equipment data exceeds the upper limit or lower limit value, the system alarms in serval ways: enternet sound and light alarm , GSM( SMS) alarm, email alarm ,ect. The instrument itself has the data storage function, support power resume, when the PC server monitoring software is closed, the external power supply failure, recorder by automatic battery data recorded in the instrument, when the PC server or external power supply return to normal, data stored in the instrument will be uploaded to the the PC server, to ensure data integrity.
| Model | Sensor type | Measureing Range | Accuracy | Record Capacity | Resolution | Weight |
|---|---|---|---|---|---|---|
| S500-TH-RJ45 | Internal temperature &humidity sensor | -20~70℃/0~100%RH | ±0.5℃/±5%RH | 4,3000 | 0.1°C / 0.1%RH | 380g |
| S500-EX-RJ45 | External temperature &humidity sensor | -40~85℃/0~100%RH | ±0.5℃/±5%RH | 0.1°C / 0.1%RH | ||
| S500-ET-RJ45 | Single external temperature sensor | -40~+85℃ | ±0.5℃ | 0.1°C | ||
| S500-EPT-RJ45 | Single External Temperature Sensor | -200~+200℃ | +-0.5c | 0.1c | ||
| S500-DT-RJ45 | Dual external temperature sensor | -40~+85℃ | ±0.5℃ | 0.1°C | ||
| S520-TH-RJ45 | Internal temperature &humidity sensor | -20~70℃/0~100%RH | ±0.3℃/±3%RH | 0.1°C / 0.1%RH | ||
| S520-EX-RJ45 | External temperature &humidity sensor | -40~85℃/0~100%RH | ±0.3℃/±3%RH | 0.1°C / 0.1%RH | ||
| S580-TH-RJ45 | Internal temperature &humidity sensor | -20~70℃/0~100%RH | ±0.2℃/±2%RH | 8,6000 | 0.1°C / 0.1%RH | |
| S580-EX-RJ45 | External temperature &humidity sensor | -40~85℃/0~100%RH | ±0.2℃/±2%RH | 0.1°C / 0.1%RH |

 ToClient software:
ToClient software:
 If user defined max/min value are exceeded , system will send SMS
to user’s mobile phone.
If user defined max/min value are exceeded , system will send SMS
to user’s mobile phone. The
file:///F:/Porject/huato.cn/huatocn/www/imgs/s500-RJ45/%E6%B5%81%E7%A8%8B1.pnglargest
number of alarm & frequency can be set, like 5 minutes send a
message or 10 minutes send a alarm message.
The
file:///F:/Porject/huato.cn/huatocn/www/imgs/s500-RJ45/%E6%B5%81%E7%A8%8B1.pnglargest
number of alarm & frequency can be set, like 5 minutes send a
message or 10 minutes send a alarm message. When the temperature or humidity returns to normal range, system
will send the SMS with good news inform the user that the data is
normal.
When the temperature or humidity returns to normal range, system
will send the SMS with good news inform the user that the data is
normal. Monitor DC power, if the power outage, sound & light alarms and SMS
alarm will be issued.
Monitor DC power, if the power outage, sound & light alarms and SMS
alarm will be issued. SMS alarm could be send to 3 different mobile phone number .
SMS alarm could be send to 3 different mobile phone number . During the power outage, the machine using the 9V battery.
During the power outage, the machine using the 9V battery. If power is restored, the instrument will also send a reminder
message.
If power is restored, the instrument will also send a reminder
message.Widely applied in Gene library, hospital, CDC, blood bank,laboratory fields, food industry, medical industry,pharmaceutical fields, electrical industry, environmental protection,warehouse and agricultural etc.
